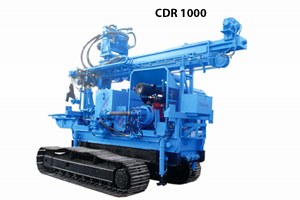

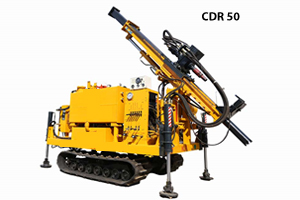

| HOLE DIAMETER |
75.80 mm |
75.80 mm |
75.80 mm |
75.80 mm |
| CAPACITY NQ |
50 meters (Only NQ) |
150 meters: HQ 75 meters |
500 meters: HQ 300meters |
1000 meters: HQ 700 meters |
| CORE DIAMETER |
47.62mm |
75.80 mm |
300 meters |
47.62mm |
| DEPTH |
50 meters |
150 meters |
50 meters |
1000 meters |
| UNDER CARRIAGE |
Under Carriage for Mounting of Rig ,Engine & Mud pump |
Under Carriage for Mounting of Rig ,Engine & Mud pump |
Under Carriage for Mounting of Rig ,Engine & Mud pump |
Under Carriage for Mounting of Rig ,Engine & Mud pump |
| PRIME MOVER |
102 HP |
213 HP |
76 HP |
260 HP |
| APPLICATION |
Core Drilling |
Core Drilling |
Core Drilling |
Core Drilling |
| FORMATION |
Soft / Hard Rock |
Soft / Hard Rock |
Soft / Hard Rock |
Soft / Hard Rock |
| MAST |
Hydraulic cylinder Maximum Pull up force - 5400 kgs | Maximum Pull down force - 2400 kgs | Maximum Pull up speed - 25 meter / minute | Maximum Pull down speed - 35 meter / minute |
Hydraulic cylinder | Maximum Pull up force - 6500 kgs | Maximum Pull down force - 3400 kgs | Maximum Pull up speed - 25 meter / minute | Maximum Pull down speed - 35 meter / minute |
Hydraulic cylinder | Maximum Pull up force - 16000 kgs | Maximum Pull down force - 8000 kgs | Maximum Pull up speed - 45 meter / minute | Maximum Pull down speed - 60 meter / minute |
Hydraulic cylinder Maximum Pull up force - 18200 kgs | Maximum Pull down force - 9100 kgs | Maximum Pull up speed - 40 meter / minute | Maximum Pull down speed - 55 meter / minute |
| ROTARY HEAD |
Max speed: 0- 1000rpm | Max speed: 0- 1000rpm |
Max speed: 0- 1000rpm | Max speed: 35- 140 kg.m |
Max speed: 0- 1200rpm | Maximum Torque: 40 to 700 kg.m |
Max speed: 0- 1200rpm | Maximum Torque: 70 to 850 kg.m |
| HYDRAULIC SYSTEM |
Maximum Working pressure 280 kg/cm2 | Pumps: Load sensing |
Maximum Working pressure 280 kg/cm2 | Pumps: Load sensing |
Maximum Working pressure 280 kg/cm2 | Pumps: Load |
Maximum Working pressure 320 kg/cm2 | Pumps: Load sensing |
| HYDRAULIC OIL COOLER |
40 gpm |
75 gpm |
70 gpm |
120 gpm |
| LEVELLING JACKS |
Four Hydraulic levelling jacks |
Four Hydraulic levelling jacks |
Four Hydraulic levelling jacks |
Four Hydraulic levelling jacks |
| ROD HOLDER |
Type : Hydraulic Operated | Jaw : B, N &H |
Type : Hydraulic Operated | Jaw : B, N &H |
Type : Hydraulic Operated | Jaw : B, N H & P |
Type : Hydraulic Operated | Jaw : B, N H & P |
| MAST RAISING CYLINDER |
Bore: 80mm | Stroke: 465mm | Quantity: 1 No |
Bore: 100mm | Stroke: 465mm | Quantity: 1 No |
Bore: 100mm | Stroke: 800mm | Quantity: 2 No |
Bore: 125mm | Stroke: 800mm | Quantity: 2 No |
| MUD PUMP/WATER PUMP |
Type : Triplex Piston Pump | Power : Hydraulic Operated | Max flow: 140 lpm | Pressure : 1000 psi |
Type : Triplex Piston Pump | Power : Hydraulic Operated | Max flow: 140 lpm | Pressure : 1000 psi |
Type : Triplex Piston Pump | Power : Hydraulic Operated | Max flow: 140 lpm | Pressure : 1000 psi |
Type : Triplex Piston Pump | Power : Hydraulic Operated |
| FOOT CLAMP |
Hydraulic Operated |
Hydraulic Operated |
Hydraulic Operated |
Hydraulic Operated |
| BREAK OUT WRENCH |
Hydraulic operated break out wrench provided for breaking of rod joints |
Hydraulic operated break out wrench provided for breaking of rod joints |
Hydraulic operated break out wrench provided for breaking of rod joints |
Hydraulic operated break out wrench provided for breaking of rod joints |
| MAIN WINCH |
Single line capacity: 3000 kgs | Drum Speed : 45 meter / minute | Cable size : 14mm |
Single line capacity: 3000 kgs | Drum Speed : 45 meter / minute | Cable size : 14mm |
Single line capacity: 7000 kgs | Drum Speed : 40 meter / minute | Cable size : 20mm |
Single line capacity: 10000 kgs | Drum Speed : 40 meter / minute | Cable size : 22mm |
| WIRE LINE WINCH |
Capacity: 75 meters of 5 mm wire rope | Line Pull : 1000 kgs | Line speed : 100 meters / minute |
Capacity: 75 meters of 5 mm wire rope | Line Pull : 1000 kgs | Line speed : 100 meters / minute |
Capacity: 550 meters of 5 mm wire rope | Line Pull : 1500 kgs | Line speed : 100 meters / minute |
Capacity: 1050 meters of 5 mm wire rope | Line Pull : 2000 kgs | Line speed : 100 meters / minute |
| OPTIONAL ATTACHMENTS |
Mudmixer, Tramming controls, Wireless remote control up to 15 meters distance, Lighting & Horn |
Mudmixer, Tramming controls, Wireless remote control up to 15 meters distance, Lighting & Horn |
Mudmixer, Tramming controls, Wireless remote control up to 15 meters distance, Lighting & Horn |
Mudmixer, Tramming controls, Wireless remote control up to 15 meters distance, Lighting & Horn |
