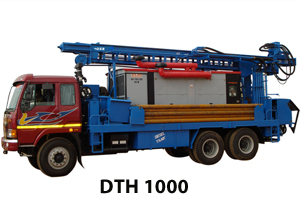

| DRILLING DIAMETER |
6.0" - 8.0" (152mm - 203mm) |
6" - 8 1/2" (152mm - 216mm) |
6" - 10" (152mm - 254mm) |
| DRILLING DEPTH |
1000 Feet (305 Mtrs) |
1500 Feet (457 Mtrs) |
2000 Feet (610 Mtrs) |
| APPLICATION |
Water Well Drilling |
Water Well Drilling |
Water Well Drilling |
| FORMATION / STRATA |
Soft / Medium / Hard |
Soft / Medium / Hard |
Soft / Medium / Hard |
| PRIME MOVER OF HYDRAULIC POWER PACK |
Truck Mounted Rig with Power from TRUCK ENGINE / DECK ENGINE |
Truck Mounted Rig with Power from TRUCK ENGINE / DECK ENGINE |
Truck Mounted Rig with Power from TRUCK ENGINE / DECK ENGINE |
| CARRIER / MOUNTING |
Truck for Mounting of Rig & Air Compressor |
Truck for Mounting of Rig & Air Compressor |
Truck for Mounting of Rig & Air Compressor |
| COMPRESSOR |
Suitable Compressor ELGI / ATLAS COPCO / IR |
Suitable Compressor ELGI / ATLAS COPCO / IR |
Suitable Compressor ELGI / ATLAS COPCO / IR |
| MAXIMUM OPERATION PRESSURE |
230 Kg/Cm2 |
230 Kg/Cm2 |
230 Kg/Cm2 |
| HYDRALIC OIL TANK CAPACITY |
650 Ltrs |
650 Ltrs |
700 Ltrs |
| MAST CAPACITY(WT) |
18 Tons |
27 Tons |
40 Tons |
| MAST CAPACITY |
20 Feet (6.1 Mtrs) |
20 Feet (6.1 Mtrs) |
20 Feet (6.1 Mtrs) |
| MAST HEIGHT |
9 Mtrs |
9 Mtrs |
9 Mtrs |
| MAST CONSTRUCTION |
Sturdy Structural Channel |
Sturdy Structural Channel |
Sturdy Structural Channel |
| CENTRALIZER OPENING |
10 5/8" (270mm) |
12" (304mm) |
14" (355.6mm) |
| PULL UP SPEED |
42 Mtrs/Min |
35 Mtrs/Min |
20 Mtrs/Min |
| PULL DOWN SPEED |
50 Mtrs/Min |
40 Mtrs/Min |
30 Mtrs/Min |
| PULL UP FORCE |
8590 Kgfm |
14070 Kgfm |
20940 Kgfm |
| PULL DOWN FORCE |
5890 Kgfm |
7420 Kgfm |
10680 Kgfm |
| ROTATION SPEED |
0-90 |
0-120 |
0-120 |
| ROTARY HEAD TORQUE |
245 Kgm |
245 Kgm |
490 Kgm |
| HYDRAULIC JACKS OPTIONS: BOX TYPE JACK |
100 X 63 X 610 Stroke 100 X 63 X 800 Stroke |
125 X 70 X 610 Stroke 100 X 63 X 800 Stroke |
125 X 70 X 610 Stroke 100 X 63 X 800 Stroke |
| BREAK OUT WRENCH(TO OPEN DRILL ROD) |
80 X 40 X300 Stroke |
80 X 40 X300 Stroke |
100 X 50 X 300 Stroke |
| WATER INJECTION PUMP |
50 Lpm |
80 Lpm |
80 Lpm |
| ROD CHANGER |
Manually Operated Single Rod Changer |
Manually Operated Single Rod Changer |
Manually Operated Single Rod Changer |
