Paver Finisher


A high in demand product used in road construction. The product requires high durability and stability with approval from the Automotive Research Authority of India (ARAI). The company has been able to get all the certifications and successfully been able to venture into this segment. Next, the company is developing a sensor paver, a premium product in this segment.

Wisent Infra’s legacy of over 40 years in manufacturing has enabled it to become one of the most reputable brand in the construction equipment industry. Riding on this, it has able to create a mechanical paver at par with best quality unit in the industry.With large scale investment in road construction, demand for good quality paver is intact and growing. Wisent Infra can capture this potential and tap the fast-growing paver market with its engineering acumen and marketing prowess.

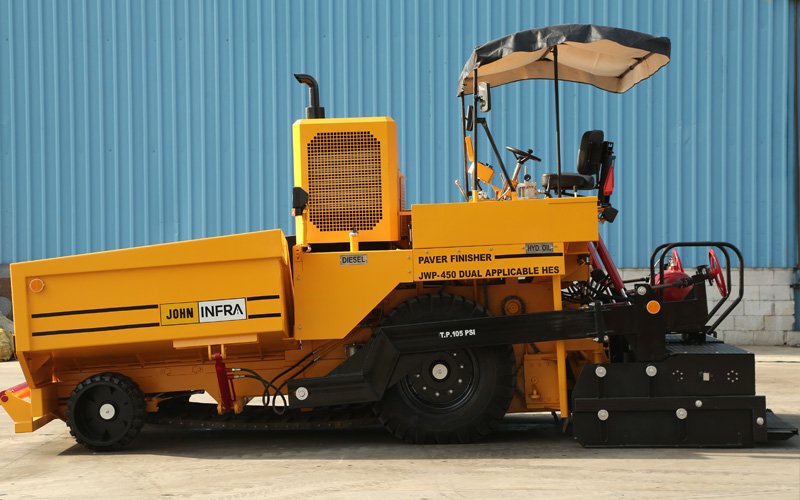

JWP 450 HES

  • JWP 450 HES comes with a basic screed of 2.5 Meters which can be extended hydraulically up to 4.5 Meters. Combination Screed/Vibrating Screed or Tamping Screed are the options for customers to choose from JWP 450 HES is for paving both Asphalt & Wet Mix Macadam (WMM).

JAP 450 HES

  • JAP 450 HES comes with a basic screed of 2.5 Meters which can be extended hydraulically up to 4.5 Meters. Combination Screed/Vibrating Screed or Tamping Screed are the options for customers to choose from JAP 450 HES is for Asphalt Paving.





Technical Specifications

MODEL JWP 450 HES JAP 450 HES
Length 5800 mm 5800 mm
Operating width 3120 mm 3120 mm
Shipping width 2700 mm 2700 mm
Operating height 3050 mm 3050 mm
Shipping height 2430 mm 2430 mm
Weight(approx.) 10 tons 9.5 tons
Truck dumping clearance 600 mm 600 mm
Wheel base 2500 mm 2500 mm
Engine make Leyland/kirloskar or equivalent Leyland/kirloskar or equivalent
Engine output 105 HP @ 2200 rpm 76 HP @ 2200 rpm
Battery 12 Volts(heavy duty) 12 Volts(heavy duty)
Tyres: Front 2 nos.-solid rubber 558 × 405 × 305 mm 558 × 405 × 305 mm
Tyres: Rear 2 nos.-pneumatic 12 × 20-18 ply 12 × 20-18 ply
Paving thickness 10-200 mm 10-200 mm
Paving width 2.5 to 4.5 meters(hydraulically extendable screed 2.5 to 4.5 meters(hydraulically extendable screed
Paving speed 1 to 23 meters 1 to 23 meters
Travel speed 0-16 KMPH 0-16 KMPH
Steering Power Steering Power Steering
Hopper capacity(approx.) 4 cubic meters 4 cubic meters
Hydraulic oil tank capacity 80 liters 80 liters
Fuel tank capacity 120 liters 120 liters
Screed heating 2 nos. oil burner 2 nos. oil burner
Screed vibration 0-30 Hz 0-30 Hz
Auger diameter 300 mm 300 mm
Crown -1 to +3 -1 to +3
Standard accessories Tool box Tool box

With John Infra's policy of constant upgradation of products, specifications are subject to change without prior notice.
