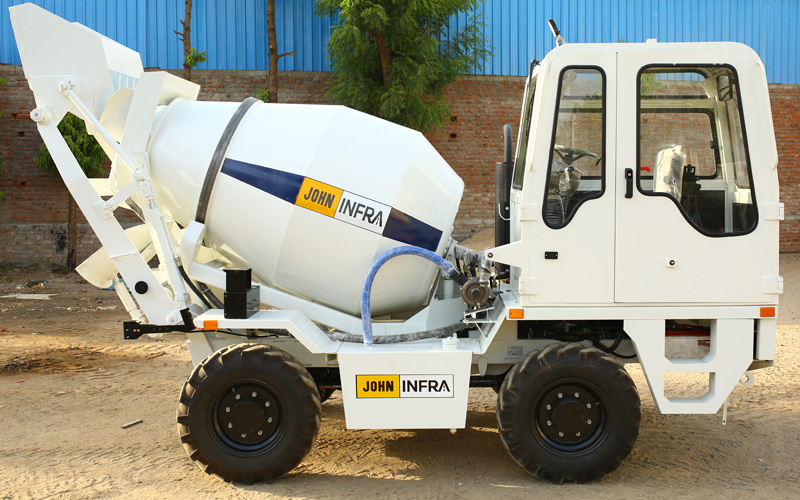

Self Loading Concrete Mixer

Reinforcing Mobility -

Traditional concrete batching plants lack mobility and require effort to install and operate. With JOHN 2.2 CM& JOHN 4.3 CM,we offer a smooth amalgamation of mobility and efficacy with its 4×4-wheel drive, this machine can work across any difficult terrain.

Cutting Edge Technology -

We utilize only the very best components to create our products. Our units have been designed to deliver stability and efficacy at their very best to your construction needs. The batch can be prepared by only one operator, and continuously monitored with weight and volume sensors. It is built as per global industry standards and thus offers a sturdy build along with ease of operation.

Key features and advantages of JOHN SLCM 2.2 & SLCM 4.3

  • Superior Design Drum design is highly advanced that allows minimum loss of material and the highest efficiency of mixing.
  • Effective maneuvering 3-Way Steering Position System lets your maneuver through tights with ease.
  • Use of Technology -The industry pioneer in providing GPS Tracker with live location, running hours, fuel meter, and average fuel consumption with an in-built reporting system.

Other Features

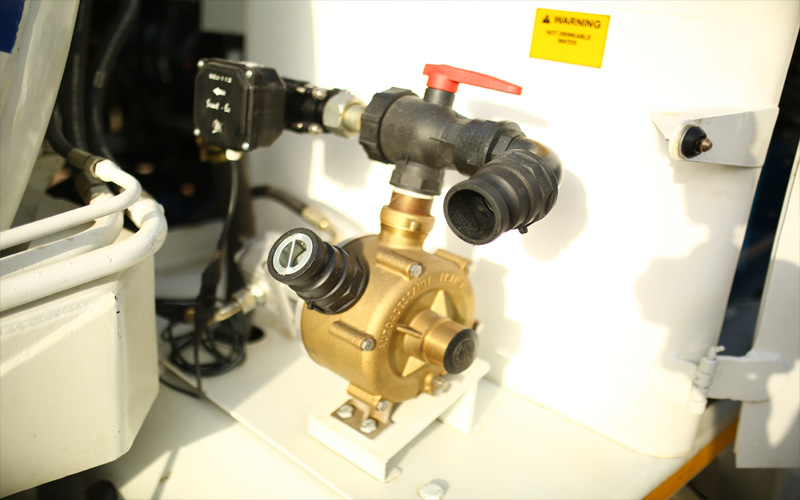

  • Water Pump and Imported Fittings
  • Imported steering Column minimizing electrical problems with 180° revolving operator seat.
  • Weighing Unit with Printer SMS, E-mail, Data on server GPS Tracker.



Technical Specifications

MODEL JOHN 2.2 JOHN 4.3
ENGINE Kirloskar Kirloskar
Water Tank 370 ltr 750 ltr
Fuel Tank 60 ltr 120 ltr
Hydraulic Tank 115 ltr 115 ltr
Water Pump Capacity 230 ltr 230 ltr
Bucket Capacity 320 ltr 585 ltr
Drum Capacity 2.80 cu.m 5.35 cu.m
Drum Output 2 cu.m 4 cu.m
Max Drum Rotation Speed 19 rpm 21 rpm
Net Weight 5385 kg 7950 kg
Gross Weight 10085 kg 17550 kg
Gradeability 28 ° 28 °
Max. Vehicle Speed 23 kmph 28 kmph
Braking System Wet discs available in front and rear axles Wet discs available in front and rear axles
Drive 4 wheel drive 4 wheel drive
Tyre 12.0/75-18-12 PR 16.0/70-20-14 PR
