| HOLE DIAMETER |
6.5" (Continuous) 9", 10" and 12" (Over burden) |
| DEPTH |
1500 Feet |
| PRIME MOVER |
Truck engine or as per customer request |
| APPLICATION |

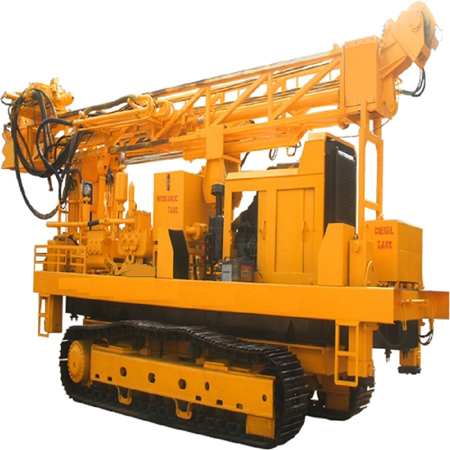

Water Well Drilling Rig |
| FORMATION |
Soft / Hard Rock |
| MAST |
Hydraulic cylinder with pulley and wire rope. | Maximum Pull up force - 15500 kgs | Maximum Pull down force - 7500 kgs | Reeving Ration - 1:3 | Maximum Pull up speed - 45 meter / minute | Maximum Pull down speed - 60 meter / minute |
| ROTARY HEAD |
Max speed: 0- 170rpm | Maximum Torque: 280 kg.m |
| HYDRAULIC SYSTEM |
Maximum Working pressure 320 kg/cm2 | Pumps: Load sensing |
| HYDRAULIC OIL COOLER |
70 gpm/120 gpm |
| BREAK OUT WRENCH |
Maximum torque: 500 kg.m | Cylinder bore: 80 mm/100 mm | Stroke: 300 mm / 350 mm |
| LEVELLING JACKS |
Four box type Hydraulic levelling jacks |
| WATER INJECTION PUMP |
Triplex reciprocating pump powered by hydraulic motor |
| ROD CHANGER |
Manually operated rod changer to handle single rods with 1000 kgs, capacity pull up winch to carry drill rods, casing and hammer tools |
| MAST RAISING CYLINDER |
Bore: 100mm | Stroke: 800mm | Quantity: 2 No's |
| OPTIONAL ATTACHMENTS |
Shock sub, Stem lock, Hole Sweeper, Dust collector, Digital controls, Auto drilling, Auto rod changer, GPS system, Driller AC cabin, Data logging system, Welding generator, Six rod carousel & Mud pump |
| AIR COMPRESSOR |
1200 cfm - 320psi/1100 cfm - 300psi |
| AIR LINE LUBRICATOR |
18 litters |
