| HOLE DIAMETER |
4.5" - 6.5" |
150 meters |
| DEPTH |
500 Feet |
150 meters |

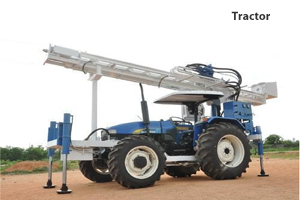

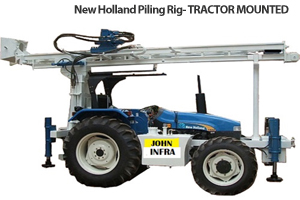

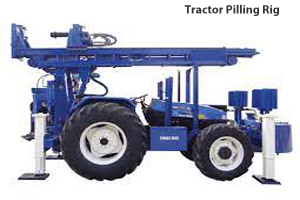

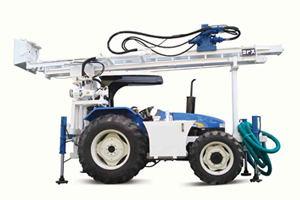

| TRACTOR |
New Holland / Form tractor / As per customer request. |
New Holland / Form tractor / As per customer request. |
| PRIME MOVER |
Tractor Engine |
Tractor Engine |
| APPLICATION |
Water Well Drilling |
Water Well Drilling |
| FORMATION |
Soft / Hard Rock |
Soft / Hard Rock |
| MAST |
Hydraulic cylinder with pulley and wire rope | Maximum Pull up force - 4500 kgs | Maximum Pull down force - 2400 kgs | Reeving Ratio 1:3 | Maximum Pull up speed - 35 meter / minute | Maximum Pull down speed - 45 meter / minute |
Hydraulic cylinder with pulley and wire rope | Maximum Pull up force - 4500 kgs | Maximum Pull down force - 2400 kgs | Reeving Ratio 1:3 | Maximum Pull up speed - 30 meter / minute | Maximum Pull down speed - 40 meter / minute |
| ROTARY HEAD |
Max speed: 0- 100rpm | Maximum Torque: 320 kg.m |
Max speed: 0- 700rpm | Maximum Torque: 40 - 120 kg.m |
| HYDRAULIC SYSTEM |
Maximum Working pressure 200 kg/cm2 | Pumps: Load sensing |
Maximum Working pressure 210 kg/cm2 | Pumps: Load sensing |
| HYDRAULIC OIL COOLER |
20 gpm |
40 gpm Quantity : 2 No's |
| BREAKOUT WRENCH |
Maximum Torque : 500 kg.m | Cylinder Bore : 80 mm |
Maximum Torque : 500 kg.m | Cylinder Bore : 80 mm |
| LEVELING JACKS |
Four Box type hydraulic leveling jacks |
Four Box type hydraulic leveling jacks |
| WATER INJECTION PUMP |
Triplex reciprocating pump powered by hydraulic motor |
Triplex reciprocating pump powered by hydraulic motor 140 lpm 1000 psi |
| OPTIONAL ATTACHMENTS |
Shock sub, Stem lock, Hole sweeper, Dust collector, Digital controls, Auto drilling, GPS system, Data logging system, Welding generator. |
Shock sub, Stem lock, Hole sweeper, Dust collector, Digital controls, Auto drilling, GPS system, Data logging system, Welding generator,Mudpump |
| MAST RAISING CYLINDER |
Bore : 100 mm | Stroke : 465 mm | Quantity : 2 No’s |
Bore : 125 mm | Stroke : 465 mm | Quantity : 2 No’s |
| AIR COMPRESSOR |
600 cfm - 200 psi / As per customer request |
|
| AIR LINE LUBRICATOR |
18 liters |
|
